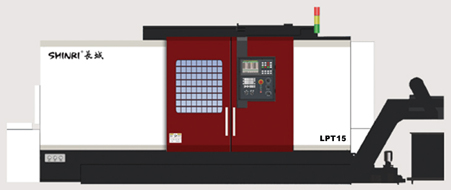

Max.swing diameter over bedmm630630
Max.swing diameter over saddlemm440440
Max.turning diameter(pipe parts)mm115140
Max.turning lengthmm500550
Max.turning length of inside holemm200200
X/Z Max.travelmm330/750300/640
HeadstockSpindle speed ranger/min25-1200140-800
Basic speed of spindler/min340326
Centering journal taper of spindlemm14° 15'14° 15'
Taper of holeMetric system140160
Through hole diameter of spindlemm120150
Fore axle neck of spindel 180200
Type model of spindle head A2-11A2-11
Distance from spindle center to bed surfacemm360360
Distance from spindle center to the floormm10501050
Min.setting unit.X/Zmm0.001/0.0010.001/0.001
Min.movement X/Zmm0.0005/0.0010.0005/0.001
Min.inspection unit X/Zmm0.0005/0.0010.0005/0.001
Amount of feed and range of thread cutFeed ratemm/min0.001-2400/0.001-24000.001-2400/0.001-2400
Rapid feed ratem/min10/1210/12
Thread type API5B5CT…long, short thread with round of trapezia teeth
Tool headMeans of drive ElectricElectric
Tool stationsmm88
OD shank sizemm32×2532×32
Max.diameter of boring bar holdermm5050
Max.swing tool nose diameter 500430
JigMeans of drive PenumaticPenumatic
Spec of through-hole chuckmmThrough hole≥¢115Through hole≥¢160
Overall dimension(Including chip conveyor)(L×W×H)mm5295×1860×19104944×1860×1910
Machine weightNet weightkg70009500
Gross weightkg800010800
