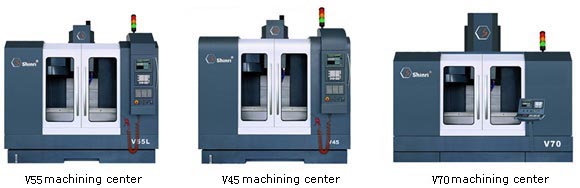

Model | V45 | V45L | V55 | V55L | V70 | ||
Travels | X axis mm | 600 | 800 | 800 | 1000 | 1600 | |
Y axis mm | 450 | 550 | 720 | ||||
Z axis mm | 520 | 600 | 760 | ||||
| Distance from spindle nose to table surface mm | 150-670 | 150-750 | 150-910 | ||||
| Distance from spindle center to guideway surface mm | 520 | 580 | 900 | ||||
Table | Table size mm | 700×450 | 900×450 | 1000×550 | 1300×550 | 1600×720 | |
Maximum loading Kg | 600 | 700 | 850 | 950 | 1800 | ||
| T-slot | 5-18×80 | 5-18×100 | 5-18×125 | ||||
Spindle | Spindle speed rpm | 8000 | 10000 | 8000 | |||
Spindle speed range | Stepless governing | Stepless governing | Stepless governing | ||||
| Spindle drive motor kw | 7.5/11(Fanuc) | 7.5/11(Fanuc) | 11/15(Fanuc) | ||||
| Spindle taper | BT40 | BT40 | BT50 | ||||
Feedrate | Rapid travel speed m/min | X、Y:36; Z:20 | X、Y:36; Z:30 | X、Y:24; Z:20 | |||
Feed speed m/min | 20 | 20 | 15 | ||||
| Feedrates motor kw | X、Y:1.8 Z:2.5 | X、Y、Z:3 | X、Y、Z:3.0 | ||||
ATC | Type of tool tape | MAS BT40 | MAS BT40 | MAS BT50 | |||
| Type pull stud | MAS BT40-1 | MAS BT40-1 | MAS BT50-1 | ||||
Tool storage capacity/ATC number of tools piece | 16 | 20(24/option) | 20 | ||||
| Maximum tool diameter(with adjacent tools) mm | ф75 | ф75 | ф133 | ||||
| Maximum tool diameter(without adjacent tools) mm | ф130 | ф130 | ф190 | ||||
| Maximum tool length mm | 300 | 300 | 350 | ||||
| Maximum tool weight kg | 8 | 8 | 10 | ||||
| Tool selection | Cutter selection nearly | Cutter selection nearly | Cutter selection nearly | ||||
Machine size | Machine occupie area mm | 2200×2000×2300 | 4050×2250×2650 | 3600×3010×3050 | |||
| Machine weight T | 4 | 4.5 | 6 | 6.5 | 12.5 | ||
Power supply | Compressed air supply MPa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | |||
| Air consumption L/min | 500 | 500 | 500 | ||||
| Electrical power supply | 3 AC380V 50/60HZ 25KVA | 3 AC380V，50/60HZ，25KVA | 3 AC380V 50/60HZ 25KVA | ||||
| Positional accuracy mm | JIS:±0.003/ISO:0.01(Allstorke) | JIS:±0.003/ISO:0.012/(Allstorke) | ISO:0.018(Allstorke) | ||||
| Repeatability mm | JIS: | JIS:±0.002/ISO:0.008/(Allstorke) | ISO:0.009(Allstorke) | ||||
