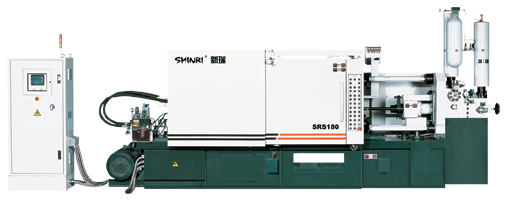

| SRS180 | SRS280 | SRS400 | |||||||
| Clamping force | kN | 1800 | 2800 | 4000 | |||||
| Bridle rod diameter | mm | 90 | 110 | 130 | |||||
| Inner distance between bridle rods | mm | 490×490 | 580×580 | 650×650 | |||||
| Closing travel | mm | 410 | 460 | 550 | |||||
| Die mold thickness(min.-max.) | mm | 220-600 | 250-700 | 300-750 | |||||
| Injection force | kN | 280 | 320 | 410 | |||||
| Injection stroke | mm | 350 | 410 | 510 | |||||
| Injection position("0" is center) | mm | 0,-100 | 0,-125 | 0,-175 | |||||
| Injection plunger diameter | mm | 50 | 60 | 50 | 60 | 70 | 60 | 70 | 80 |
| One dose injection capacity(AI) | kg | 1.3 | 1.9 | 1.5 | 2.2 | 3.0 | 2.7 | 3.7 | 4.8 |
| Casting pressure(pressure increase) | MPa | 143 | 99 | 163 | 113 | 83.2 | 145 | 107 | 82 |
| Casting area | cm2 | 126 | 182 | 172 | 247 | 337 | 276 | 376 | 490 |
| Max.casting area(40Mpa) | cm2 | 450 | 750 | 1000 | |||||
| Injection chamber flange diameter | mm | 101.6f7 | 101.6f7 | 101.6f7 | |||||
| Injection chamber height of projection | mm | 120-0.05 | 120-0.05 | 120-0.05 | |||||
| Pushing distance of injection plunger | mm | 130 | 140 | 200 | |||||
| Ejector force | kN | 110 | 150 | 180 | |||||
| Ejection stroke(max.) | mm | 90 | 110 | 130 | |||||
| System working pressure | MPa | 15 | 15 | 15 | |||||
| Oil pump motor power | kW | 18.5 | 22 | 22 | |||||
| Machine weight | T | 9.5 | 12.8 | 18.5 | |||||
| Machine overall dimension(L×W×H) | m | 5.56×1.38×2.5 | 6.1×1.5×2.6 | 6.48×1.54×2.72 | |||||
